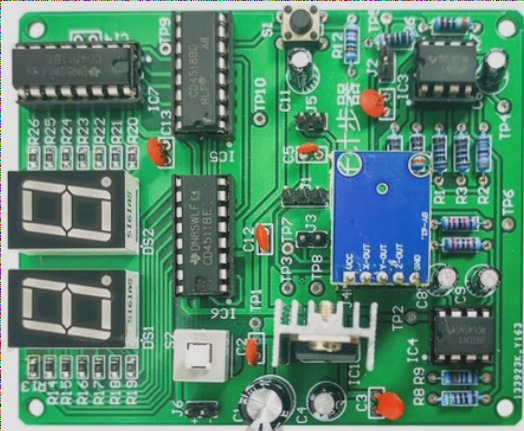

**Tip 1: Effective PCB Grounding to Reduce EMI**
One of the most crucial strategies to minimize Electromagnetic Interference (EMI) in PCB design is optimizing the ground plane. The first priority should be to maximize the size of the ground area within the overall PCB layout. A large and well-connected ground plane effectively reduces emissions, crosstalk, and noise. It’s essential to ensure proper grounding for each component by connecting it to a common ground point or plane. Any failure to do this properly can undermine the grounding system’s effectiveness, preventing it from neutralizing unwanted interference.
In complex PCB designs, multiple stable reference voltages may be required. Ideally, each reference voltage would have its own dedicated ground plane. However, incorporating too many ground planes can significantly increase the PCB manufacturing costs. As a practical solution, it’s common to use three to five ground planes, each containing several ground sections. This approach balances cost and performance, reducing both EMI and Electromagnetic Compatibility (EMC) issues while keeping production costs manageable.
Another critical aspect is the signal return time. To minimize EMI, the signal return path should be as short and symmetrical as possible. Any imbalance in the signal and return path length can act like an antenna, radiating energy and contributing to EMI. Additionally, the current paths—both to and from the signal source—should be kept as short as possible to avoid introducing ground bounce, which can also lead to unwanted EMI.
By following these guidelines for grounding, PCB designers can effectively mitigate EMI, ensuring better performance and reliability of the circuit.
### Tip 2: Separation of Analog and Digital Circuits for EMI Control
Effective EMC (Electromagnetic Compatibility) design requires proper separation between analog and digital circuits to minimize electromagnetic interference (EMI). Analog circuits typically involve higher currents, which can interfere with high-speed digital signals or switching circuits. Therefore, it is crucial to position analog circuits away from these sensitive digital traces. Additionally, grounding signals can help protect analog circuits from external noise.
In multilayer PCB designs, it’s recommended to route analog traces on a dedicated ground plane, separate from the high-speed or switching signal traces. This ensures that the two types of signals remain isolated from one another, effectively reducing noise and interference.
For digital circuit design, experienced PCB engineers focus on the integrity of high-speed signals and clock lines. These should be kept as short as possible and placed adjacent to a solid ground plane. This helps contain crosstalk, noise, and radiation within controllable limits, preventing these high-speed signals from disrupting nearby components. Furthermore, digital signals should be routed far from the power plane to avoid signal degradation from induced noise or currents.
### Tip 3: Proper Signal Routing and Return Path Design
Signal integrity heavily depends on the routing of traces, especially when dealing with high-current or high-speed signals. If a current originates from devices such as oscillators, it’s critical to ensure that the current path does not run parallel to other traces or the ground plane. Parallel high-speed signals can create unwanted EMI, especially through crosstalk.
A fundamental rule is to minimize the length of the resistance path and the return current path. Ideally, the return current trace should match the length of the signal trace, helping to maintain the integrity of the signal. This symmetry reduces the chance of signal degradation and electromagnetic interference.
EMI is a result of “infringed” and “victimized” wiring, where electromagnetic fields induce unwanted currents on adjacent traces, particularly in the case of high-speed signals. This coupling can generate noise and cause instability, manifesting as signal distortion, reflections, or other interference.
As new materials and components are introduced into PCB design, designers must continuously refine their strategies to address evolving electromagnetic compatibility (EMC) challenges.
### Tip 4: Use of Decoupling Capacitors
Decoupling capacitors are essential for reducing crosstalk and stabilizing voltage levels in a PCB design. These capacitors should be placed between the power supply pin and the ground pin of each device. This configuration ensures low AC impedance and helps suppress noise and unwanted signal coupling.
To achieve effective decoupling across a wide frequency range, it’s advisable to use multiple capacitors with varying values. This multi-capacitor approach covers a broad spectrum of frequencies, ensuring robust noise suppression and stable performance for both analog and digital circuits.
### Tip 5: Avoiding 90° Angles in Trace Routing
When designing PCB traces, it is critical to avoid right-angle bends (90° corners), as these can contribute to increased radiation and EMI. Right-angle corners create localized capacitance and alter the characteristic impedance of the trace, leading to signal reflections and potential interference.
To minimize these effects, traces should be routed with two 45° angles when changing direction. This practice smooths the signal path, reducing the chances of EMI and ensuring better overall signal integrity.
### Tip 6: Careful Use of Vias
Vias are commonly used in PCB designs to provide electrical connections between different layers. However, vias can introduce unwanted inductance and capacitance, which can negatively affect signal integrity. In some cases, they may even cause reflections due to changes in characteristic impedance as signals pass through the via.
PCB layout engineers must carefully plan via placement and minimize their use when possible, especially in high-speed designs. Where vias are necessary, careful attention should be given to their size, placement, and routing to minimize their impact on signal quality and to prevent potential issues with EMI.
### Tip 7: Minimizing Parasitic Effects in Cables
Cables carrying both digital and analog signals can introduce parasitic capacitance and inductance, which can lead to various EMC problems. To mitigate these effects, twisted pair cables are a useful solution, as they help maintain a low coupling level and reduce the generated magnetic field, thereby minimizing EMI.
For high-frequency signals, shielded cables should be used. These cables must be properly grounded at both ends to ensure that any induced EMI is safely diverted to ground, effectively preventing interference from reaching sensitive components.
These tips are based on years of experience in the field and are key practices for managing EMC and signal integrity in complex PCB designs. As technology advances, staying vigilant about new materials, components, and techniques is critical to ensuring continued success in EMI and EMC management.
