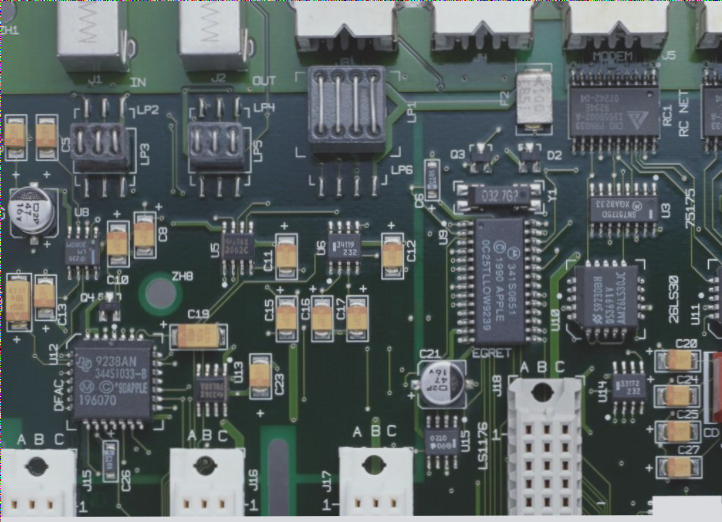

With the growing demand for a better living environment, the environmental impact of PCB production processes has become increasingly prominent. Among the key concerns, lead and bromine usage are particularly significant, as the shift towards lead-free and halogen-free PCBs will have far-reaching effects on the PCB industry’s development.
Although the surface treatment processes in PCB manufacturing have not undergone major changes recently, it is important to recognize that gradual, long-term shifts can lead to substantial transformations. As environmental protection becomes more critical, PCB surface treatment technologies are expected to evolve significantly in the near future.
The primary goal of surface treatment is to ensure optimal solderability and electrical performance. Since natural copper oxidizes when exposed to air, it cannot retain its original metallic form for long periods. Therefore, copper must undergo additional treatments to prevent oxidation. While strong fluxes can remove most copper oxide during assembly, they are not commonly used in the industry due to their difficult removal properties. For this reason, PCB manufacturers typically avoid fluxes that leave residue behind.
Several surface treatment methods are commonly used in PCB production, each with its own advantages. The most widely adopted techniques include Hot Air Leveling (HAL), Organic Coating, Electroless Nickel/Immersion Gold (ENIG), Immersion Silver, and Immersion Tin. Below, we will discuss each of these methods in detail:
### 1. Hot Air Leveling (Spray Tin)
Hot Air Leveling, commonly known as spray tin, is one of the oldest and most traditional methods for surface treatment. It involves the application of molten solder to the PCB surface, followed by the use of hot air to level and smooth the solder coating. This method provides excellent solderability and is widely used in through-hole technology (THT) assemblies. However, one downside is the potential for a tin-lead alloy to be used, which can present environmental concerns due to the presence of lead. Over time, this has led to the development of lead-free solder alternatives.
The process can also introduce issues such as solder bridging or excessive solder, which requires precise control of temperature and airflow to achieve consistent results. While hot air leveling remains a reliable method, it is gradually being supplemented or replaced by newer, more environmentally friendly surface treatments as industry demands shift toward sustainability.
By structuring the discussion in this way, the content maintains a logical flow and presents the information with clarity, focusing on both the current practices and the future direction of PCB surface treatment technology.
### 1. Hot Air Leveling (HAL)
Hot Air Leveling (HAL), also known as Hot Air Solder Leveling (HASN) or spray tin, is a widely used surface treatment for PCBs. In this process, molten solder (typically lead-based or lead-free) is applied to the PCB surface and then leveled using heated compressed air. The purpose of this process is twofold: to prevent copper oxidation and to provide a layer with excellent solderability.
During hot air leveling, the molten solder reacts with the copper surface to form a copper-tin intermetallic compound at the interface, ensuring a strong, reliable solder joint. The process begins by submerging the PCB in the molten solder. Once the PCB is adequately coated, a hot air knife is used to blow away the excess solder before it solidifies. The air flow helps control the solder meniscus, preventing bridging and ensuring that the solder layer is uniform and smooth. This process minimizes the risk of oxidation and improves long-term solderability, making it a preferred method for many high-quality PCB applications.
### 2. Organic Solderability Preservative (OSP)
The Organic Solderability Preservative (OSP) process is a surface treatment for PCB copper foils that meets RoHS (Restriction of Hazardous Substances) compliance. OSP involves the chemical formation of a thin organic film on the clean copper surface, which acts as a protective layer against oxidation, moisture, and thermal shock.
This film offers temporary protection for the copper surface in normal environmental conditions but is designed to be easily removed during soldering. Once the PCB is exposed to flux during the soldering process, the protective layer dissolves quickly, allowing the clean copper surface to bond with the molten solder, ensuring a strong and reliable solder joint. The simplicity and environmental benefits of OSP make it a cost-effective solution for many PCB manufacturers.
### 3. Nickel-Gold Plating
Nickel-gold plating involves applying a layer of nickel followed by a layer of gold onto the PCB surface. The nickel layer serves as a barrier, preventing the diffusion of gold into the copper substrate. There are two main types of electroplated nickel-gold finishes:
– **Soft gold**: This is pure gold, often used for gold wire bonding in chip packaging. The surface appears dull and is less resistant to wear.
– **Hard gold**: This plating contains additional elements like cobalt, making the gold surface harder and more wear-resistant. It is used primarily for electrical interconnections in non-soldered areas, where durability and longevity are essential.
Nickel-gold plating offers excellent electrical properties and corrosion resistance, making it suitable for high-performance PCBs in applications like telecommunications and aerospace.
### 4. Immersion Gold
Immersion gold is a surface treatment that involves applying a thin layer of gold over a nickel underlayer through an immersion process. This method provides a durable and corrosion-resistant finish that offers excellent electrical properties and long-term protection for the PCB. Immersion gold is particularly useful in preventing the dissolution of copper during soldering, making it ideal for lead-free assembly processes.
One of the key advantages of immersion gold is its ability to withstand environmental stressors that may affect other surface finishes. It also provides a reliable, flat surface for soldering, making it an excellent choice for high-density PCBs.
### 5. Tin Immersion (Shen Xi)
The tin immersion process involves coating the PCB with a thin layer of tin, which forms a copper-tin intermetallic compound at the interface. Similar to hot air leveling, this method provides excellent solderability without the flatness issues associated with hot air leveling. However, tin immersion requires careful timing, as the solderability can degrade if the board is stored for too long before assembly.
The tin layer serves as an effective solderable surface, ensuring high-quality joints when exposed to molten solder. The key benefit of tin immersion is its ability to provide a consistent and smooth surface, enhancing the overall quality of the PCB.
### 6. Immersion Silver
Immersion silver is a surface finish that provides a thin layer of silver over the copper substrate. This process is straightforward and cost-effective, offering good solderability and environmental resistance, even in conditions of heat and humidity. However, silver may tarnish over time, losing its luster, although it retains its functional properties.
While immersion silver provides reasonable physical strength, it lacks the durability of more robust finishes like electroless nickel/immersion gold. Nonetheless, it remains a popular choice for applications where cost and performance need to be balanced.
### 7. Chemical Nickel-Palladium-Gold (Ni/Pd/Au)
The chemical nickel-palladium-gold process adds a layer of palladium between the nickel and gold layers. Palladium serves as a corrosion barrier, preventing substitution reactions that could affect the performance of the gold layer. This additional layer also helps to ensure the durability and stability of the gold finish, providing a more reliable contact surface for high-performance applications.
This process is ideal for PCBs used in harsh environments, where both corrosion resistance and long-term reliability are critical. It offers the benefits of both nickel-gold and palladium, making it a robust option for demanding applications like medical devices and automotive electronics.
### 8. Hard Gold Plating
Hard gold plating is applied to PCBs to enhance wear resistance, especially in areas subject to frequent insertion and removal of components, such as connectors. Hard gold is typically alloyed with cobalt and other elements to increase its hardness and durability, making it well-suited for high-cycle mechanical operations.
As the demand for more durable PCBs increases, hard gold plating is becoming more common, especially in applications where repeated mechanical contacts or exposure to harsh environmental conditions are expected.
### Conclusion: The Evolving Landscape of PCB Surface Treatments
With the growing demand for more versatile and environmentally friendly surface treatment processes, the choice of which technique to use can be overwhelming. Advances in surface treatment technologies have made it possible to balance performance, cost, and environmental impact in a variety of applications.
As the industry continues to evolve, it is clear that surface treatment processes must not only meet the technical requirements of modern electronics but also address stricter environmental regulations. While the future direction of PCB surface treatments remains uncertain, it is evident that achieving user requirements while minimizing environmental impact will continue to be a key focus in the development of new technologies.
Although the surface treatment processes in PCB manufacturing have not undergone major changes recently, it is important to recognize that gradual, long-term shifts can lead to substantial transformations. As environmental protection becomes more critical, PCB surface treatment technologies are expected to evolve significantly in the near future.
The primary goal of surface treatment is to ensure optimal solderability and electrical performance. Since natural copper oxidizes when exposed to air, it cannot retain its original metallic form for long periods. Therefore, copper must undergo additional treatments to prevent oxidation. While strong fluxes can remove most copper oxide during assembly, they are not commonly used in the industry due to their difficult removal properties. For this reason, PCB manufacturers typically avoid fluxes that leave residue behind.
Several surface treatment methods are commonly used in PCB production, each with its own advantages. The most widely adopted techniques include Hot Air Leveling (HAL), Organic Coating, Electroless Nickel/Immersion Gold (ENIG), Immersion Silver, and Immersion Tin. Below, we will discuss each of these methods in detail:
### 1. Hot Air Leveling (Spray Tin)
Hot Air Leveling, commonly known as spray tin, is one of the oldest and most traditional methods for surface treatment. It involves the application of molten solder to the PCB surface, followed by the use of hot air to level and smooth the solder coating. This method provides excellent solderability and is widely used in through-hole technology (THT) assemblies. However, one downside is the potential for a tin-lead alloy to be used, which can present environmental concerns due to the presence of lead. Over time, this has led to the development of lead-free solder alternatives.
The process can also introduce issues such as solder bridging or excessive solder, which requires precise control of temperature and airflow to achieve consistent results. While hot air leveling remains a reliable method, it is gradually being supplemented or replaced by newer, more environmentally friendly surface treatments as industry demands shift toward sustainability.
By structuring the discussion in this way, the content maintains a logical flow and presents the information with clarity, focusing on both the current practices and the future direction of PCB surface treatment technology.
### 1. Hot Air Leveling (HAL)
Hot Air Leveling (HAL), also known as Hot Air Solder Leveling (HASN) or spray tin, is a widely used surface treatment for PCBs. In this process, molten solder (typically lead-based or lead-free) is applied to the PCB surface and then leveled using heated compressed air. The purpose of this process is twofold: to prevent copper oxidation and to provide a layer with excellent solderability.
During hot air leveling, the molten solder reacts with the copper surface to form a copper-tin intermetallic compound at the interface, ensuring a strong, reliable solder joint. The process begins by submerging the PCB in the molten solder. Once the PCB is adequately coated, a hot air knife is used to blow away the excess solder before it solidifies. The air flow helps control the solder meniscus, preventing bridging and ensuring that the solder layer is uniform and smooth. This process minimizes the risk of oxidation and improves long-term solderability, making it a preferred method for many high-quality PCB applications.
### 2. Organic Solderability Preservative (OSP)
The Organic Solderability Preservative (OSP) process is a surface treatment for PCB copper foils that meets RoHS (Restriction of Hazardous Substances) compliance. OSP involves the chemical formation of a thin organic film on the clean copper surface, which acts as a protective layer against oxidation, moisture, and thermal shock.
This film offers temporary protection for the copper surface in normal environmental conditions but is designed to be easily removed during soldering. Once the PCB is exposed to flux during the soldering process, the protective layer dissolves quickly, allowing the clean copper surface to bond with the molten solder, ensuring a strong and reliable solder joint. The simplicity and environmental benefits of OSP make it a cost-effective solution for many PCB manufacturers.
### 3. Nickel-Gold Plating
Nickel-gold plating involves applying a layer of nickel followed by a layer of gold onto the PCB surface. The nickel layer serves as a barrier, preventing the diffusion of gold into the copper substrate. There are two main types of electroplated nickel-gold finishes:
– **Soft gold**: This is pure gold, often used for gold wire bonding in chip packaging. The surface appears dull and is less resistant to wear.
– **Hard gold**: This plating contains additional elements like cobalt, making the gold surface harder and more wear-resistant. It is used primarily for electrical interconnections in non-soldered areas, where durability and longevity are essential.
Nickel-gold plating offers excellent electrical properties and corrosion resistance, making it suitable for high-performance PCBs in applications like telecommunications and aerospace.
### 4. Immersion Gold
Immersion gold is a surface treatment that involves applying a thin layer of gold over a nickel underlayer through an immersion process. This method provides a durable and corrosion-resistant finish that offers excellent electrical properties and long-term protection for the PCB. Immersion gold is particularly useful in preventing the dissolution of copper during soldering, making it ideal for lead-free assembly processes.
One of the key advantages of immersion gold is its ability to withstand environmental stressors that may affect other surface finishes. It also provides a reliable, flat surface for soldering, making it an excellent choice for high-density PCBs.
### 5. Tin Immersion (Shen Xi)
The tin immersion process involves coating the PCB with a thin layer of tin, which forms a copper-tin intermetallic compound at the interface. Similar to hot air leveling, this method provides excellent solderability without the flatness issues associated with hot air leveling. However, tin immersion requires careful timing, as the solderability can degrade if the board is stored for too long before assembly.
The tin layer serves as an effective solderable surface, ensuring high-quality joints when exposed to molten solder. The key benefit of tin immersion is its ability to provide a consistent and smooth surface, enhancing the overall quality of the PCB.
### 6. Immersion Silver
Immersion silver is a surface finish that provides a thin layer of silver over the copper substrate. This process is straightforward and cost-effective, offering good solderability and environmental resistance, even in conditions of heat and humidity. However, silver may tarnish over time, losing its luster, although it retains its functional properties.
While immersion silver provides reasonable physical strength, it lacks the durability of more robust finishes like electroless nickel/immersion gold. Nonetheless, it remains a popular choice for applications where cost and performance need to be balanced.
### 7. Chemical Nickel-Palladium-Gold (Ni/Pd/Au)
The chemical nickel-palladium-gold process adds a layer of palladium between the nickel and gold layers. Palladium serves as a corrosion barrier, preventing substitution reactions that could affect the performance of the gold layer. This additional layer also helps to ensure the durability and stability of the gold finish, providing a more reliable contact surface for high-performance applications.
This process is ideal for PCBs used in harsh environments, where both corrosion resistance and long-term reliability are critical. It offers the benefits of both nickel-gold and palladium, making it a robust option for demanding applications like medical devices and automotive electronics.
### 8. Hard Gold Plating
Hard gold plating is applied to PCBs to enhance wear resistance, especially in areas subject to frequent insertion and removal of components, such as connectors. Hard gold is typically alloyed with cobalt and other elements to increase its hardness and durability, making it well-suited for high-cycle mechanical operations.
As the demand for more durable PCBs increases, hard gold plating is becoming more common, especially in applications where repeated mechanical contacts or exposure to harsh environmental conditions are expected.
### Conclusion: The Evolving Landscape of PCB Surface Treatments
With the growing demand for more versatile and environmentally friendly surface treatment processes, the choice of which technique to use can be overwhelming. Advances in surface treatment technologies have made it possible to balance performance, cost, and environmental impact in a variety of applications.
As the industry continues to evolve, it is clear that surface treatment processes must not only meet the technical requirements of modern electronics but also address stricter environmental regulations. While the future direction of PCB surface treatments remains uncertain, it is evident that achieving user requirements while minimizing environmental impact will continue to be a key focus in the development of new technologies.
