1. **Choosing the right solder paste is crucial for ensuring high-quality solder joints and reliable electronic assemblies.** With numerous options available, selecting the most suitable solder paste for your manufacturing process can be a complex task. This guide will highlight the key factors you need to consider when making your choice.

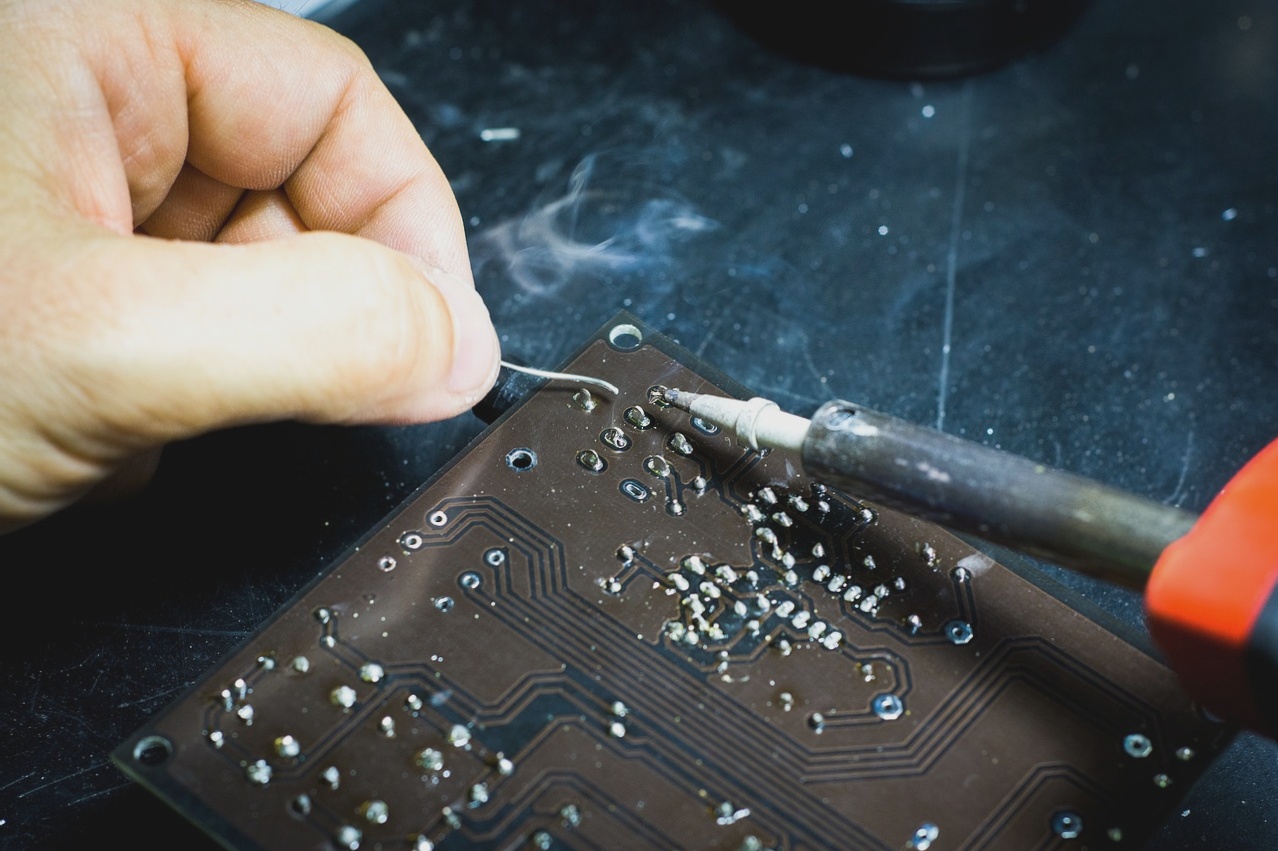

2. **The first step in selecting solder paste is understanding your specific soldering process.** Different soldering techniques—such as reflow soldering, wave soldering, or manual soldering—have distinct requirements. For example, reflow soldering, which is commonly used in surface mount technology (SMT), may require paste with different properties compared to wave soldering, which involves a continuous flow of molten solder.
3. **Solder paste typically consists of a solder alloy and flux.** The most common alloys include tin-lead (SnPb) and lead-free options, such as tin-silver-copper (SAC) alloys. Given the growing emphasis on environmental sustainability, lead-free solder paste has become the standard in many industries due to stringent environmental regulations, especially in high-reliability applications.
4. **When choosing an alloy, several factors need to be considered, such as the melting point, thermal fatigue resistance, and mechanical properties.** For example, SAC305 (96.5% Sn, 3% Ag, 0.5% Cu) is a popular lead-free alloy known for its excellent thermal and mechanical properties, making it suitable for high-temperature applications.
**Conclusion:**
Selecting the right solder paste is essential for achieving optimal performance and reliability in electronic assemblies. By understanding the specific soldering process, choosing the appropriate alloy, and considering key material properties like melting point and mechanical stability, you can ensure a successful soldering operation. Whether you’re working with traditional SnPb or environmentally friendly lead-free alloys, making an informed choice will result in high-quality solder joints and long-lasting electronic products.
1. **Flux** plays a crucial role in solder paste performance. It facilitates the removal of oxidation from metal surfaces and enhances the flow of solder during the heating process. There are three primary types of flux: rosin-based, water-soluble, and no-clean.
2. **Rosin-based flux** is commonly used for hand soldering and rework applications, but it can leave a residue that requires cleaning after the soldering process. **Water-soluble flux** is easy to clean but is sensitive to humidity and requires thorough cleaning after use to avoid potential issues. **No-clean flux**, on the other hand, leaves minimal residue and is ideal for processes where cleaning is not practical or feasible. The activity level of flux—categorized as low, medium, or high—reflects its cleaning ability and aggressiveness. It’s essential to select a flux with an activity level appropriate to your specific application and substrate materials to ensure optimal results.
3. The **viscosity** of solder paste plays a significant role in its printability and overall application. Thicker pastes are typically better suited for stencil printing, as they provide better adhesion and control during the printing process. Conversely, thinner pastes may be better for applications involving finer-pitch components. Always ensure that the viscosity of the solder paste matches both your printing equipment and process capabilities to avoid defects.
4. If you are using a **stencil printer**, it’s recommended to conduct a printability test to assess how well the paste adheres to the stencil and transfers onto the PCB. Performing this test before the production run can help identify potential issues, such as insufficient paste volume or improper release, which could lead to defects in the final assembly.
5. **Solder paste has a finite shelf life**, which can vary considerably depending on the brand and formulation. Be sure to check the manufacturer’s specifications for proper storage conditions, including recommended temperature and humidity ranges, to ensure optimal performance. Proper storage can significantly extend the shelf life of solder paste and help maintain its performance characteristics over time.
**Conclusion**: In summary, selecting the right flux and solder paste viscosity is critical for achieving high-quality solder joints. Understanding the different types of flux and their activity levels, along with the properties of solder paste, such as viscosity and shelf life, will help ensure successful soldering operations. Always perform proper testing and adhere to recommended storage practices to optimize performance and avoid defects in the final product.
1. **Compatibility with Components and PCB Materials**
Compatibility between components and PCB materials is critical to avoid issues such as delamination or component damage during soldering. It is essential to conduct comprehensive tests to ensure that the selected solder paste is compatible with the specific components being used, especially when dealing with sensitive or high-value parts.
2. **Manufacturer Reputation**
Finally, consider the reputation of the solder paste manufacturer. Established brands typically offer a wealth of resources, including technical support, detailed documentation, and user reviews. Investing in a reputable product not only ensures quality but also provides peace of mind, as you can rely on their support should any issues arise during the manufacturing process.
**Summary:**
Ensuring the compatibility of solder paste with both PCB materials and components is key to avoiding defects during soldering. Testing the paste with your specific components is necessary, particularly for sensitive parts. Moreover, choosing a solder paste from a reputable manufacturer offers additional security, providing access to reliable support and resources.
1. **Selecting the right solder paste is a multifaceted decision** that directly influences the quality and reliability of your electronic assemblies. This choice is not just about the paste itself but how it integrates with your entire soldering process.
2. **Understanding your soldering process** is the first critical step. Whether you’re working with wave soldering, hand soldering, or reflow soldering, the paste you select must be compatible with the method you use, as well as the specific components on the board.
3. **Evaluating alloy compositions** is another essential factor. The solder alloy composition affects the paste’s melting point, flow characteristics, and final strength of the solder joints. Different assemblies may require different alloys, so choosing the correct one can help prevent issues like cold joints or insufficient wetting.
4. **Assessing flux types** is equally important. Flux not only facilitates the soldering process by removing oxides from the surfaces being joined but also impacts the paste’s shelf life, viscosity, and residue behavior. Selecting the right flux type ensures consistent, high-quality soldering results.
5. **Testing for compatibility** with your specific PCB materials and components is crucial to ensure the paste works seamlessly within your system. Compatibility testing can prevent problems like excessive residue or material degradation, which could otherwise undermine the reliability of your assemblies.
6. **Conducting trials and seeking expert advice** are highly recommended steps. Testing different solder pastes on your production line can help you identify the most suitable option. Moreover, consulting with industry experts can provide valuable insights based on real-world experience and the latest technological advances.
7. **Summary**: Choosing the right solder paste is a critical decision that can significantly impact your assembly process. By carefully understanding your soldering requirements, evaluating alloy compositions, selecting the right flux type, and ensuring compatibility, you can optimize your process. Don’t hesitate to run trials and consult experts to achieve the best possible outcomes. With the right solder paste, you can maintain high-quality standards and improve the reliability of your electronic assemblies.
