What is Injection Molding?

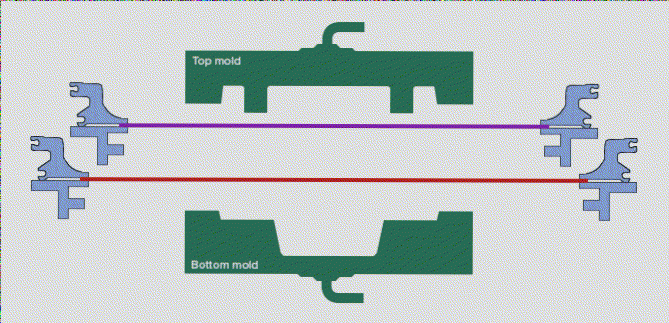

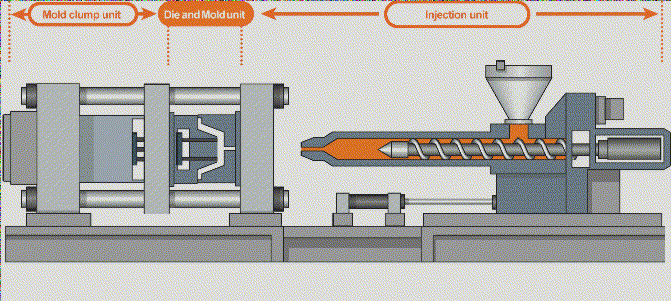

Injection molding is a manufacturing process where molten plastic is injected into a precisely designed mold. This mold, typically made of durable metals such as steel or aluminum, shapes the plastic as it cools and solidifies, producing the final part. The core stages of the injection molding process include clamping, injection, cooling, and ejection.
Advantages:
- A wide variety of materials with diverse properties can be used.
- The final product can be produced in any color.
- Insert molding is possible, allowing for additional components or metal parts.
- Offers tight tolerances for intricate designs.
- Highly cost-effective for large-volume and repetitive orders.
- Minimal waste is produced, which can be re-ground and reused.
Disadvantages:
- Initial mold fabrication, particularly for steel molds, can be costly.
- Mold design documents require specialized knowledge and expertise from the customer.
- Lead time for initial mold manufacturing is typically longer, averaging 30 days.
What is Vacuum Casting?
Vacuum casting involves creating a silicone mold, placing it in a vacuum chamber, and filling it with degassed liquid material. Once the vacuum is released, the mold is removed from the chamber and placed in an oven for curing. After curing, the silicone mold is removed, revealing the finished part. This process can be repeated, as the silicone mold is reusable.
Advantages:
- Shorter lead time for new molds, typically 10-12 days.
- Lower initial cost for mold setup.
- Ideal for creating larger plastic parts.
- Cost-effective for small batch production.
Disadvantages:
- Achieving uniform wall thickness can be challenging.
- Limits the level of detail and complexity that can be achieved.
- Not cost-effective for large volume production.
How to Choose Between Injection Molding and Vacuum Casting
The following factors should be considered when choosing between injection molding and vacuum casting:
Quantity:
Injection molding is the preferred method for large-volume orders. Despite its higher initial mold cost, the unit cost per part is significantly lower, making it the most cost-efficient choice when producing thousands or tens of thousands of units. Conversely, for smaller quantities—such as prototypes or small batches—vacuum casting is often more economical due to its much lower mold setup cost.
Detail and Complexity:
Injection molding typically produces higher-quality parts with finer detail, especially when using high-grade metals for mold construction. For parts with intricate features or high precision, injection molding is the ideal choice. However, for simpler parts produced in small quantities, vacuum casting can provide a cost-effective solution with good surface finishes.
Speed and Flexibility:

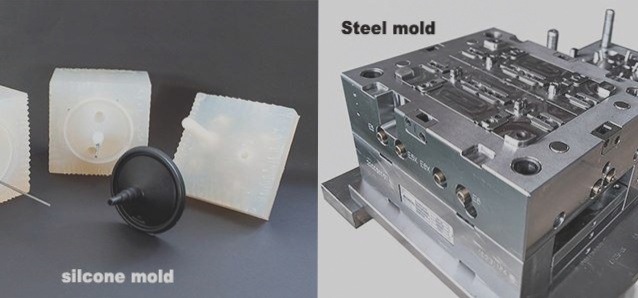

When design modifications are required, it is much easier and less expensive to modify a silicone mold used for vacuum casting than to rework or replace a steel mold for injection molding. This makes vacuum casting a faster, more flexible option, especially during the early stages of product development. Many companies choose to use vacuum casting for rapid prototyping before moving on to injection molding for full-scale production. Additionally, the mold creation time for vacuum casting is faster, significantly shortening the lead time for prototypes.
