In the design of high-speed PCB analog signal chains, printed circuit boards require careful consideration of various layout and routing options. Some of these options hold greater significance than others, while some are contingent on the specific application. While the ultimate solutions may differ, it is crucial for design engineers to focus on eliminating errors in best practices without getting overly fixated on every layout detail. This article will begin with a discussion on the exposed pad, followed by an exploration of four key areas: decoupling and layer capacitance, layer coupling, and ground separation.

**Exposed Pad**

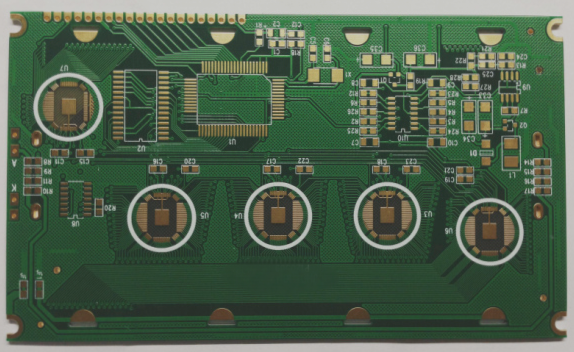

The exposed pad (EPAD) is often overlooked, yet it plays a critical role in maximizing the performance of the signal chain and effectively dissipating heat from the device. Known as pin 0 by ADI, the exposed pad is located beneath most modern devices. It serves as a vital connection, linking all internal grounds of the chip to a central point beneath the device. You may have noticed that many converters and amplifiers today forgo traditional ground pins in favor of the exposed pad.

The crucial aspect is to ensure this pin is properly secured (i.e., soldered) to the PCB to establish a reliable electrical and thermal connection. A weak connection can lead to issues, meaning the design may not function as intended.

**Achieving the Best Connection**


There are three key steps to establish optimal electrical and thermal connection with the exposed pad.

1. Whenever feasible, replicate the exposed pads on each PCB layer. This approach aims to create a robust thermal connection with all ground layers, facilitating rapid heat dissipation. This step is particularly relevant for high-power devices and applications with numerous channels. Electrically, it ensures effective equipotential bonding across all ground planes. Additionally, duplicating the exposed pad on the bottom layer can serve as a grounding point for decoupling heat dissipation and provide a location for installing a heat sink on the underside.

2. Segment the exposed pad into multiple identical sections, akin to a chessboard pattern. Employ a wire mesh cross grid on the exposed pad or utilize a solder mask. This strategy guarantees a stable connection between the device and the PCB. During the reflow assembly process, the behavior of solder paste flow and its ultimate connection to the PCB can be unpredictable. While connections may form, they can be unevenly distributed, potentially resulting in only a small connection, or worse, a connection at the corner. By dividing the exposed pad into smaller sections, each area is ensured a connection point, leading to a more reliable and uniformly connected exposed pad.

3. Ensure that all sections have vias linked to the ground. Each area should typically accommodate multiple vias. Prior to assembly, be sure to fill each via with solder paste or epoxy. This step is crucial to prevent the exposed pad solder paste from reflowing into the via holes, which could compromise the integrity of the connection.

**Decoupling and Layer Capacitance**

Engineers sometimes overlook the purpose of decoupling, instead dispersing numerous capacitors of varying sizes across the circuit board to connect the low-impedance power supply to the ground. However, the question persists: how much capacitance is truly required? Many documents suggest using various capacitors to reduce the impedance of the power distribution system (PDS), but this is somewhat misleading. In fact, it’s essential to choose the appropriate sizes and types of capacitors to effectively lower PDS impedance.

**Layer Coupling**

Some PCB layouts inevitably feature overlapping circuit layers. In certain instances, a sensitive analog layer (such as power, ground, or signal) may be placed above a noisy digital layer. This potential interference is often overlooked, as the high-noise layer resides below the sensitive analog layer. However, a simple experiment can illustrate the impact: by injecting signals at one layer and measuring the adjacent layer’s response with a spectrum analyzer, the coupling effects become apparent.

**Separate Ground**

A common inquiry among designers of analog signal chains is whether to separate the ground plane into AGND and DGND when utilizing an ADC. The brief answer is: it depends. The more detailed answer is: typically, no separation is advisable. Why? Because in most scenarios, unnecessarily separating the ground plane can increase the inductance of the return path, leading to more harm than benefit.
