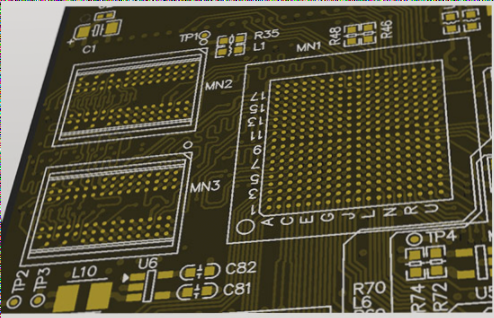

**PCBA Processing for Driving Recorder Control Board**
1. Comprehensive PCBA solutions for the driving recorder control board.
2. PCB assembly, along with PCB/PCBA design and PCBA duplication.
3. Customized PCBA processing, including OEM and EMS (Electronic Manufacturing Services).
4. SMT, DIP, PTH, and BGA assembly services.
5. Component procurement services are available.
6. Rapid PCBA prototyping.
7. Testing services include X-ray inspection, internal circuit testing (ICT), and functional testing (FCT).
8. We accept small to medium production runs.
PCBA manufacturing services for driving recorder control boards.
Customers provide: PCB documents, PCB process requirements, bill of materials, and assembly or soldering technical specifications.
One-stop PCBA service: production of PCBs with 1-30 layers, procurement of assembly parts/materials, SMT production, PCBA testing, PCBA burn-in testing, PCBA packaging, and PCBA delivery.
PCBA manufacturing quality for the driving recorder control board:
1. Certifications: UL, SGS, TUV, BV, ROHS, ISO9001:2008, TS16949.
2. Four dust-proof SMT production lines and DIP production lines.
3. Operators wear anti-static and dust-proof overalls throughout the entire line.
4. Operators undergo strict training before being approved for specific job positions.
5. PCBA production equipment: Jikangda solder paste printer, Panasonic MV2-F & JUKI-2050M placement machines, reflow oven, wave soldering machine, and AI plug-in machine.
6. PCBA test equipment: ORT machine, constant temperature and humidity test chamber, 3D coordinate measuring instrument, ROHS inspection machine, and X-ray inspection.
7. PCBA testing capabilities: ICT (Internal Circuit Testing), FCT (Functional Circuit Testing), and BGA X-ray testing.
8. Range of machinable components:
▪ 0201, 0402, 0603, 0805, 1206, 1608, 2125, 3216
▪ Fine QFP 0.2mm
▪ Flip Chip, BGA, Connector
▪ BGA 0.2mm
9. Each workstation operates in accordance with SOP (Standard Operating Procedures).
10. Materials: FR-4, FPC, aluminum base, high TG, halogen-free, high frequency, CEM-1, CEM-3, FR-1, 94-VO, etc.;
11. Sheets: Kingboard, Shengyi, Guoji Class A materials.
Driving recorder control board PCBA production delivery time:
Once the OEM contract is signed and the engineering documents are confirmed, the sample delivery time typically ranges from 7 to 10 working days. For large-scale production, delivery can be arranged in batches based on customer requirements.
PCBA processing for the driving recorder control board:
Supplementary information for PCBA manufacturing of the driving recorder control board:
1. Mass production can commence once the sample is approved.
2. Plug-in components can only be positioned once, with the minimum distance to the PCB board remaining unchanged.
3. Positioning and grounding holes will be protected with high-temperature resistant tape.
4. EPE anti-static packaging is utilized to prevent impacts and other issues.
Driving recorder control board PCBA shipment:
Standard packaging: Each PCBA board is placed in an anti-static bag, then enclosed in a bubble bag, and finally packed in specially processed cartons.
The above provides an overview of the PCBA processing capabilities for the driving recorder control board.
—
