Product Description
Long flex PCB is not an easy job, especially when it is 7 days quick-turn. Here introduce a 1100mm long polyimide flex PCB we have built.
It is made of DuPont? Polyimide with ENIG finish. Built for high 220°C working temparature, it has superior heat-resistance performance as polyimide flexible PCB.
To catch the date, we use 7 days to build it and ship out with fastest DHL service. Other requirements about this PCB are 0.28mm thickness, 5/5mil Min tarce/space.
WellCircuits Ltd is expert in flexible PCB fabrication, especially long flex PCB like this one. Welcome reach out for quote if you have similar design.
Specifications Chart
| Layer | 3L |
|---|---|
|
Length |
1100mm |
|
Thickness |
0.28mm |
|
Min Trace/Space |
5/5mil |
|
Finish |
ENIG |
|
Working Temp. |
220°C Oil Production |
Our Equipments
-
FPC Laminate Cutting Machine
-

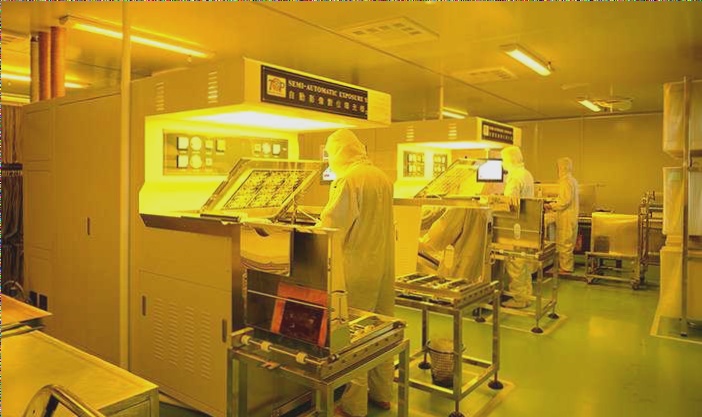

Automatic Exposure Machine
-

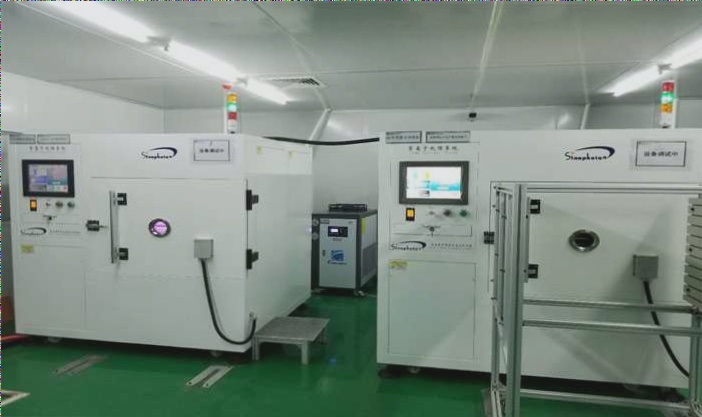

Plasma Cleaning Machine
-

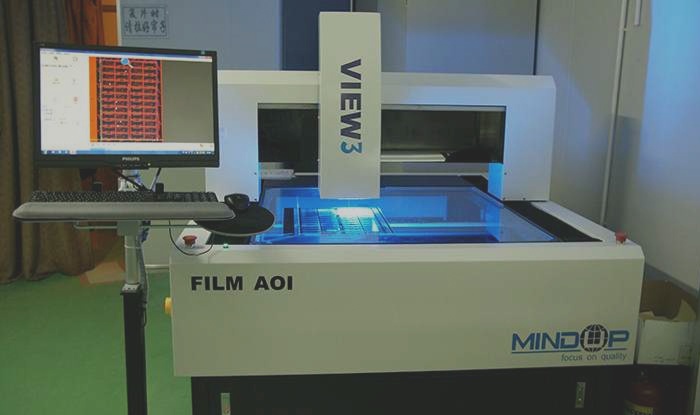

AOI Machine
-

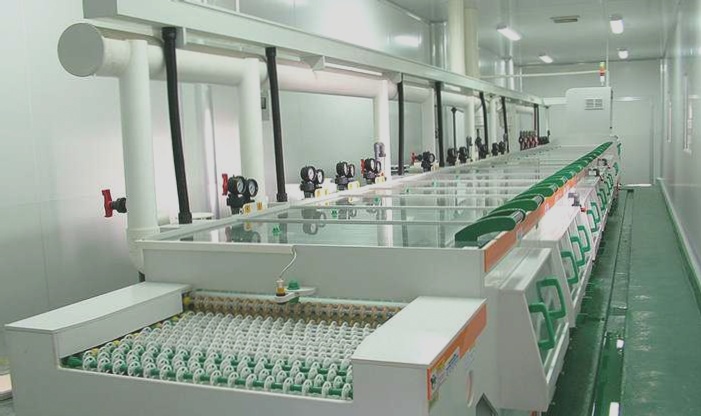

Brown Oxide Line
-

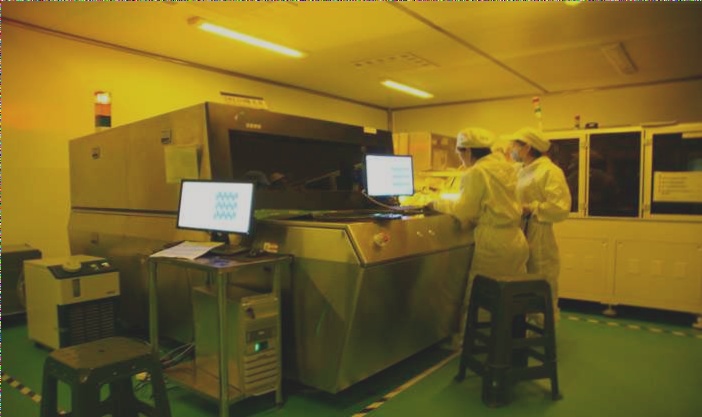

LDI Machine
Get Instant Quote Now
Our Flexible Circuit Capability
Flexible Circuit's - Technical Capability
| Item | Specification | ||||
|---|---|---|---|---|---|
| Layer | >=1 | ||||
| Max Size | 20"x40",support customization | ||||
| Substrate | Polyimide; LCP | ||||
| Final Thickness | 0.12-0.4 mm ,support customization | ||||
| Min Trace/Space | 2mil/2mil | ||||
| Via Types | Through vias; Tented vias; Blind vias; Buried vias; Stacked vias; Via in pad | ||||
| Copper Weight(finished) | 25-140um | ||||
| Min Laser Via | 3mil | ||||
| Min Mechanical Hole | 4mil | ||||
| Impedance Control | YES | ||||
| Stifferner Material | FR-4, Polyimide, SUS | ||||
| Surface Finishes | LF HASL, OSP, ENIG, Immersion tin, Gold fingers | ||||
| Available Service | Bare Board Production; Consigned Assembly; Turnkey Assembly | ||||
Frequently Asked Questions
● Q: What is longest flex PCB you can make?
A: We can make up to 2.5 meters flex PCB.
● Q: Are you able to make flexible PCB with both end having connectors easily?
A: Yes, this is one of the typical flexible circuit types we produced a lot.
● Q: How about your lead time? Can you do Quick-turn?
A: Yes, for single-layer and double-sided Flex PCB, our fastest lead time is 48 hours. For 4- 6 layers above, we can produce within 5 working days.
● Q: Can you perform good connector assembly?
A: Yes, we deliver over 500+ turnkey flex PCB assembly works so far, so you can count on us for high reliability assembly for your flex PCB.
● Q: Can you provide stack-up suggestions in the early design stage?
A: Yes, we love to give suggestions for your flexible PCB design with our decades of manufacturing experience For Free.
Why Choose Us?
We offer flex PCB fabrication
WellCircuits is a high quality long flexible PCB manufacturer & assembler in China. With more than 15 years of experience as a PCB supplier, we are known for our expertise in all kinds of polyimide flex PCB manufacturing & assembly, including flex PCB prototype, low volume, medium volume, and high volume flexible PCB. Meanwhile, we also provide one-stop flex board assembly service for customers who need affordable and quick turnaround PCBA service.
WellCircuits Ltd manufactures a variety of flexible printed circuit boards, from single-layer flex PCB, double-sided flex PCB to multilayer flex circuits, up to 12 layers. Especially long flexible circuits for hi-tech applications.
All of our flex PCB products are IPC standard certified with Class II or Class III as customer needs. WellCircuits’s goal is to provide top-notch flex PCBs to the department dedicating to electronic research & development. Whether you are a design company or end product manufacturer, we are more than happy to offer you with our professional flex PCB solution.
To maximize the odds of “Right at First Design” , we can provide in-depth engineering support for each stage, from layout drawing, mechanical assemblies, functions testing to prototype return result analysis and refinement trial. Using our decade of flex PCB manufacturing experience, you can avoid multiple manufacturability & compatibility issues before put into production, and enjoy fast delivery within the shortest time possible.
Contact us now at info@wellcircuits.com, or upload Gerber file below to start the cooperation that will provide your business with consistently high quality flexible printed circuit board.
