One-stop Flexible PCB Assembly
What is flexible PCB assembly? Flexible Printed Circuit Board Assembly refers to a process of soldering components on the surface of PCB. It is delicate work that required advanced equipment and rich hands-on experience. WellCircuits offers a quick-turn, low-volume flexible PCB assembly service with PCB production in-house. A leading provider of Flexible PCB Assembly services for you.
1. Flex PCB Production
2. Component Sourcing
3. SMT Assembly
Get Instant Quote Now

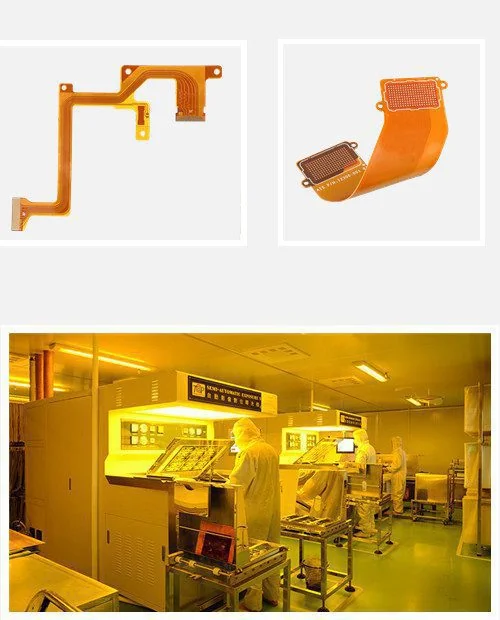

Part 1 Flex PCB Production
Flexible Circuit's - Technical Capability
| Item | Specification | ||||
|---|---|---|---|---|---|
| Layer | >=1 | ||||
| Max Size | 20"x40",support customization | ||||
| Substrate | Polyimide; LCP | ||||
| Final Thickness | 0.12-0.4 mm ,support customization | ||||
| Min Trace/Space | 2mil/2mil | ||||
| Via Types | Through vias; Tented vias; Blind vias; Buried vias; Stacked vias; Via in pad | ||||
| Copper Weight(finished) | 25-140um | ||||
| Min Laser Via | 3mil | ||||
| Min Mechanical Hole | 4mil | ||||
| Impedance Control | YES | ||||
| Stifferner Material | FR-4, Polyimide, SUS | ||||
| Surface Finishes | LF HASL, OSP, ENIG, Immersion tin, Gold fingers | ||||
| Available Service | Bare Board Production; Consigned Assembly; Turnkey Assembly | ||||

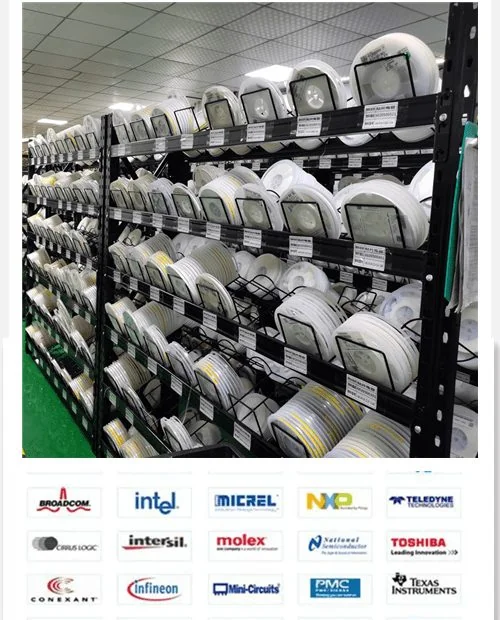

Part 2 Component Sourcing & Storage
In-house Component Solution
· Permanently ready stock for YAGEO, MURATA, and AVX brand resistors, and capacitors.
· Formal supplier access and annual audit mechanism
· Strict IQC incoming inspection

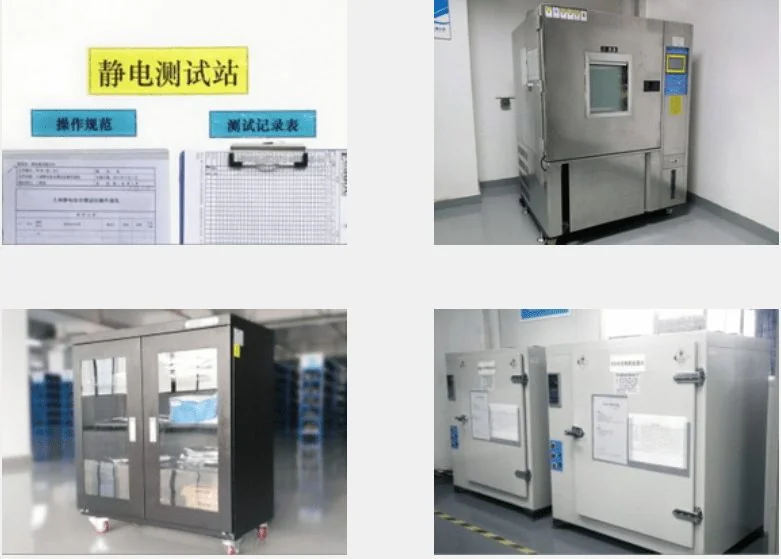

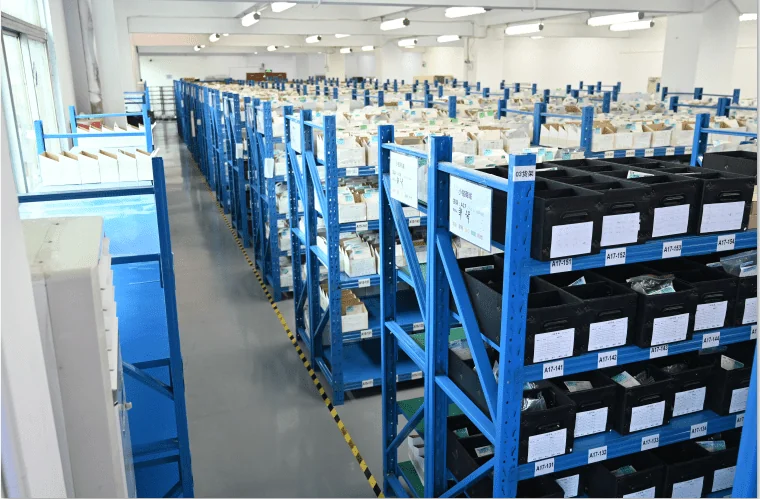

· Warehouse management: constant temperature and humidity, anti-static control
· Professional component certification engineer, BOM engineer

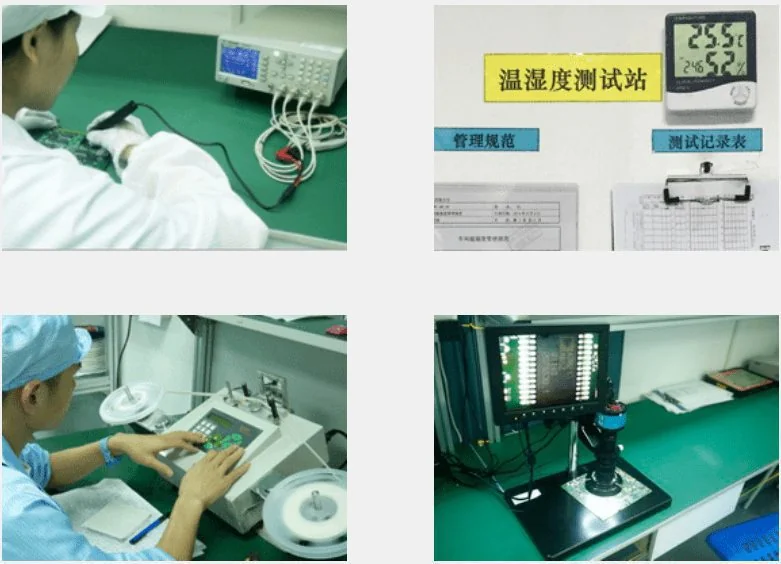

Incoming Parts Inspection

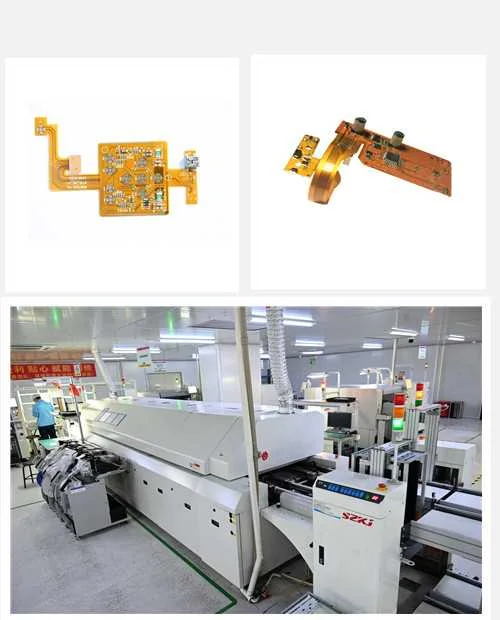

Part 3 Flex PCB Assembly
In-house SMT Lines
WellCircuits is equipped with 50 fully automatic, high-speed SMT production lines which are made by world-class equipment companies: Yamaha YSM20, and Panasonic NPM-D3.
Monthly capacity: up to 500 million pieces.
Component size: 01005 ~ 0201 size SMD parts, 0.2MM BGA.
| Item | Capability | |||||
|---|---|---|---|---|---|---|
| SMT Speed | 30.15 millions chips/ Day | |||||
| SMT Lines | 50 automatic lines | |||||
| Smallest Part Size | 01005 Chip/0.35 Pitch BGA | |||||
| PCB Size | 50*50mm - 900*600mm | |||||
WHY WellCircuits?
Flexible Printed Circuit Board Assembly Service
- Cable Harness Assembly
- PCB Assembly Testing
- Prototype PCB Assembly
- Turnkey PCB Assembly
- BGA and μBGA Assembly
- Lead-Free PCB Assembly
- SMT PCB Assembly
- Through Hole PCB Assembly
- Consignment PCB Assembly
- PCB Assembly Rework
- Quick Turn PCB Assembly
- Low Volume PCB Assembly
- High Volume PCB Assembly
- PCB Conformal Coating
- IC Programming
Industrial PCB Assembly
Telecommunication PCB Assembly
Mainboard PCB Assembly
Automotive PCB Assembly
Medical PCB Assembly
Instrument PCB Assembly
Robotics PCB Assembly
GPS System PCB Assembly
