What Is HDI Printed Circuit Board?
High-density interconnect, or HDI, circuit boards are printed circuit boards with a higher wiring density per unit area than traditional printed circuit boards. In general, HDI PCBs are defined as PCBs with one or all of the following: microvias; blind and buried vias; built-up laminations and high signal performance considerations. Printed circuit board technology has been evolving with changing technology that calls for smaller and faster products. HDI boards are more compact and have smaller vias, pads, copper traces and spaces. As a result, HDIs have denser wiring resulting in lighter weight, more compact, lower layer count PCBs. Rather than using a few PCBs in a device, one HDI board can house the functionality of the previous boards used.
Structure of HDI Circuit Board

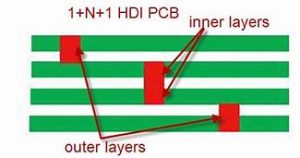

- This structure of HDI PCB contains 1 “build-up” of high-density interconnection layers, suitable for BGA with lower I/O counts.
- It has fine lines, microvia and registration technologies capable of 0.4 mm ball pitch, excellent mounting stability and reliability, and may contain copper filled via.
- Applications: Cell phone, MP3 Player, GPS, Memory Card.

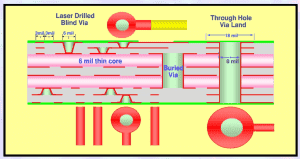

- This structure of HDI PCB contains 2 or more “build-up” of high-density interconnection layers; microvias on different layers can be staggered or stacked; Copper filled stacked microvia structures are commonly seen in challenging designs that demand high level signal transmission performance.
- These are suitable for BGA with smaller ball pitch and higher I/O counts and can be used to increase routing density in a complicated design while maintaining a thin finished board thickness.
- Applications: Cell phone, PDA, game console, portable video recording devices.
-ELIC (Every Layer Interconnection): Most Complex HDI
- In this HDI PCB structure, all the layers are high-density interconnection layers which allow the conductors on any layer of the PCB to be interconnected freely with copper filled stacked microvia structures.
- This provides a reliable interconnect solution for highly complex large pin-count devices, such as CPU and GPU chips utilized on handheld and mobile devices while producing superior electrical characteristics.
- Applications: Cell phone, ultra-mobile PC, MP3, GPS, Memory cards, small computer devices.
What Advantages HDI PCB Has Versus Other PCB Types?
- Phenomenal versatility: HDI boards are ideal where weight, space, reliability, and performance are primary concerns.
- Compact design: The combination of blind vias, buried vias, and microvias brings down the board space requirement.
- Better signal integrity: HDI incorporates via-in-pad and blind via technology. This helps in placing the components closer to each other which cuts down the signal path length. It therefore remarkably improves signal integrity due to shorter signal paths.
- High reliability: The implementation of stacked vias make these boards a super shield against extreme environmental conditions.
- Cost-effective: The functionality of a standard 8-layer through-hole board (standard PCB) can be reduced to a 4-layer HDI board without compromising the quality.
Applications of HDI Printed Circuit Board
- Smartphones and Tablets
All smartphones are HDI PCBs with ELIC (Every Layer Interconnection) construction. The HDI PCBs are responsible for creating thinner are smaller portable electronic devices.
- Wearable Technology
With the launch of Apple watch and other wearable devices like VR headsets, HDI is becoming the major stakeholder in the consumer market.
- Healthcare
The HDI PCB is making an impact on the medical industry. The medical devices are usually HDI since they can fit in small devices like implants and lab and imaging equipment.
- Telecom
As 5G technology is set to jump start since 2020, the demand for more versertile and advanced PCBs grow rapidly. HDI PCB’s super connectivity allows wide employmet of 5G technology become possible.
- Automotive
Like almost everything else, cars are becoming more connected and computerized. Today’s cars have around 50 microprocessors on board that play a role in engine controls, diagnostics, safety features and other conveniences. Many advanced features such as onboard WiFi and GPS, rearview cameras and backup sensors rely on HDI PCBs. As automotive technology continues to advance, HDI tech will likely play an increasingly important role.
HDI PCB Fabrication Process
