Quick-turn Rigid Flex PCB Manufacturer
Recognizing the pivotal role of time in the rapidly evolving electronics manufacturing landscape, we’ve designed a swift-turnaround rigid-flex PCB prototyping service. This service is tailored to accelerate your product development, ensuring a quicker path to market for your innovations.
With WellCircuit’s quick-turn rigid-flex PCB prototyping service, you’ll benefit :
1、Speed: We can produce your prototypes in as little as 24 hours, allowing you to test and iterate your designs more quickly.
2、Flexibility: Our flexible manufacturing processes can accommodate a wide range of design requirements, including complex multi-layer designs and custom shapes.
3、Quality: We use only the highest quality materials and processes to ensure that your prototypes meet your exacting standards.
4、Expertise: Our team of experienced engineers and technicians are available to provide DFM support and design guidance throughout the prototyping process.
5、Cost-effectiveness: Our streamlined production processes and efficient supply chain allow us to offer competitive pricing without compromising on quality.
Quick-turn Rigid Flex PCB Prototyping
5 and 6 layers rigid flex PCBs are very common in rigid flex PCB design, especially at consumer electronics sector. Below two PCBs are perfect illustration.
The 5 layer board for satellite camera is with 1R+3F+1R stackup, 1.6mm finish thickness, ENIG surface treatment. The min hole and min space are both 0.25mm while trace width is 0.15mm.

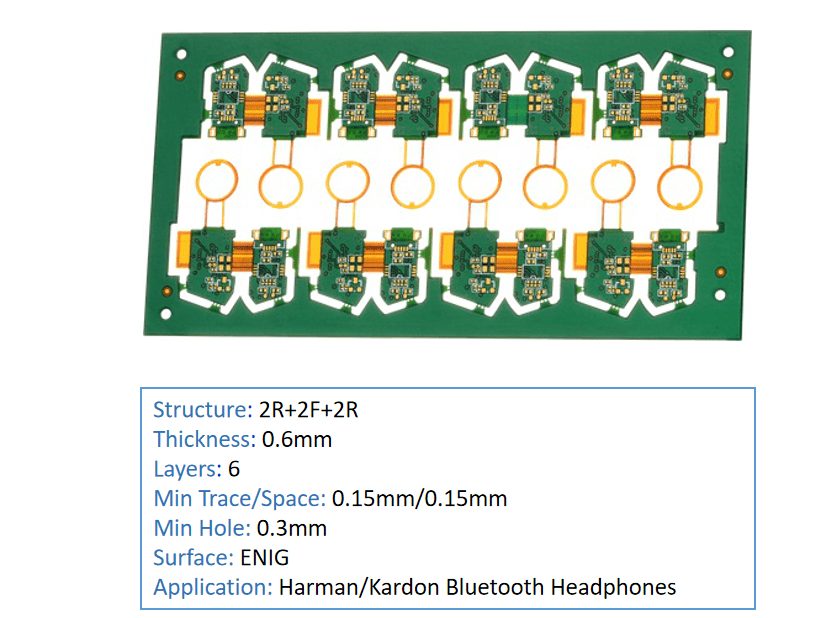

This board is a 6 layer HDI rigid flex pcb. Its overall board thickness is 0.6mm. The finished copper thickness is 2 OZ. Green solde mask is in the rigid area and amber cover film is in flex area.
Medical industry used a lot rigid flex PCB due to its demand for higher connection reliability and smaller size. The 10 layers board below is just a great example.
It is with 2R+2F+2F+2F+2R stackup, 2.0mm final thickness. The Min trace width and space are the same-0.075mm, Min hole dimension is 0.2mm.
Quick-turn Rigid Flex Stackup
10L Stackup
This stackup is designed for electrocardiogram (ECG/EKG) which requires high density interconnection.
Stacked microvias can save space and increase density, offer greater flexibility concerning the inner connections, better routing capacity and less parasitic capacitance.
6L Stackup
This stackup is designed for electrocardiogram (ECG/EKG) which requires high density interconnection.
Stacked microvias can save space and increase density, offer greater flexibility concerning the inner connections, better routing capacity and less parasitic capacitance.
Check Our Equipment
Get Instant Quote Now
WellCircuits ADVANTAGES
- In-house engineering
- Turnkey FPC & Assembly Solution
- Quick-turn up to 48hrs
- In-house assembly lines
- Support Prototype | Series Production
Our Rigid Flex PCB Capability
WellCircuits stands as a trusted and reliable supplier for rigid-flex circuit boards, meeting diverse manufacturing needs with our dedicated focus on advanced technology in this field.
Our proficient team, specialized in rigid-flex circuits, excels in quickly grasping your design specifics, saving you valuable time, particularly in cross-timezone communications. As our client, you’ll experience professional Design for Manufacturability (DFM) support at the outset, seamless communication throughout, and punctual delivery post-order placement.
Our acclaimed service includes quick-turnaround rigid-flex PCBs, covering single-layer, double-sided, and multilayer boards, inclusive of blind or buried vias, capable of accommodating up to 26 layers. We guarantee both quality and lead time for all projects.
In need of swift prototype validation for a new concept? Our expedited service ensures both rapid delivery and unwavering quality. Entrusting us with your rigid-flex PCB project ensures timely and cost-effective delivery of your initial prototypes.
If you are checking rigid flex PCB cost around, contact us now at info@wellcircuits.com. You will be hearing from one of the most exceptional rigid-flex PCB manufacturers in China.
