5 Mainstream PCBA (PCB) Circuit Board Test Methods

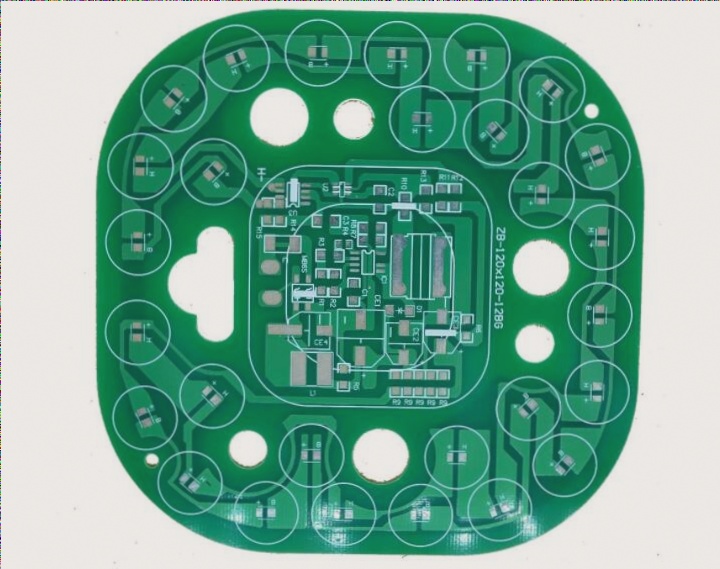

PCBA circuit boards consist of numerous circuits and components, making testing a crucial aspect to ensure high product yield and delivery quality. The following are the five most common PCB testing methods in use today:
1. **PCB Manual Visual Inspection**
Manual visual inspection involves checking the placement of components on the PCB through direct human observation and comparison. This method is one of the most widely employed forms of in-line testing. However, as production volumes increase and circuit boards and components become smaller, this approach is becoming increasingly less feasible. The main advantages include low upfront costs and no need for specialized test fixtures. However, its drawbacks include high long-term costs, limited defect detection capabilities, challenges with data collection, absence of electrical testing, and constraints due to visual inspection limitations.
2. **PCB Automated Optical Inspection (AOI)**
Automated Optical Inspection (AOI), also known as automatic visual inspection, is typically performed before and after reflow soldering. This method has gained popularity as a more efficient way to identify manufacturing defects. It is particularly effective for checking component polarity and verifying component presence. AOI is a non-electrical, fixture-free, in-line testing method. Key benefits include easy follow-up diagnostics, straightforward program development, and no need for test fixtures. However, its main limitations are poor short-circuit detection and the absence of electrical testing capabilities.
3. **PCB Functional Testing (Functional Test)**
Functional testing involves assessing the circuit board’s overall performance in real-world conditions by applying operational power and verifying the functionality of the components. This method ensures that the PCB performs its intended functions under typical operating conditions. It is particularly useful for catching defects that may not be detectable through visual or optical means. The advantages of functional testing include its ability to identify real-world performance issues and its comprehensive nature. On the downside, it can be time-consuming, requires test fixtures, and may not be feasible for high-volume production due to the time required for each test.
4. **PCB In-Circuit Testing (ICT)**
In-Circuit Testing (ICT) is an electrical test method that checks for defects by applying test signals to the components and measuring the results. It provides detailed feedback about the electrical integrity of the PCB by checking for open or short circuits, incorrect components, and faulty connections. ICT is highly effective for identifying issues like component misplacement or soldering defects. The main advantages include high accuracy and the ability to detect a wide range of faults. However, it requires specialized fixtures and may not be suitable for all PCB designs, especially those with high-density or complex layouts.
5. **PCB X-ray Inspection**
X-ray inspection is a non-destructive testing method primarily used to inspect the inner layers of a PCB, as well as the solder joints in BGA (Ball Grid Array) and other surface-mount components. X-ray inspection can detect hidden defects such as voids in solder joints, misaligned components, or internal PCB issues that are not visible to the naked eye. The key advantages include its ability to inspect complex, multi-layered designs and detect hidden faults. However, it is expensive, requires specialized equipment, and is typically used for high-end applications or when other testing methods are insufficient.
These five PCB testing methods, when applied appropriately, help ensure the reliability and functionality of PCBs in various electronic applications.
**Functional Testing** is the earliest principle of automatic testing. It is a fundamental testing method for a specific PCB or unit, and it can be carried out using various testing equipment. Functional testing primarily includes Final Product Testing (FPT) and the latest physical model testing (Hot Mock-up).
4. **PCB (Flying-Probe Tester)**
The Flying Probe Tester, also known as the Probe Tester, is a commonly used testing method. Thanks to improvements in mechanical accuracy, speed, and reliability, it has gained widespread adoption in recent years. Additionally, the increasing demand for testing systems capable of fast conversion without the need for fixtures—especially for prototype and low-volume production—makes the flying probe test the ideal choice. The primary advantage of the flying probe tester is its ability to offer the fastest Time To Market (TTM), with automatic test generation, no fixture costs, strong diagnostic capabilities, and ease of programming.
5. **PCB Manufacturing Defect Analyzer (MDA)**
The MDA is an effective tool for diagnosing manufacturing defects in high-volume, low-mix environments. The key benefits of this PCB testing method include low initial cost, high throughput, easy follow-up diagnostics, and fast, complete testing for short circuits and open circuits. However, its main drawbacks are that functional testing cannot be performed, there is usually no test coverage indication, fixtures are required, and the overall testing cost can be higher.
**Note:** These five mainstream PCB circuit board testing methods are crucial because PCBA circuit boards involve numerous circuits and components. Testing is vital to ensuring product yield and delivery quality. Therefore, it is essential to give adequate attention to all of these methods.
If you have any PCB manufacturing needs, please do not hesitate to contact me.Contact me
