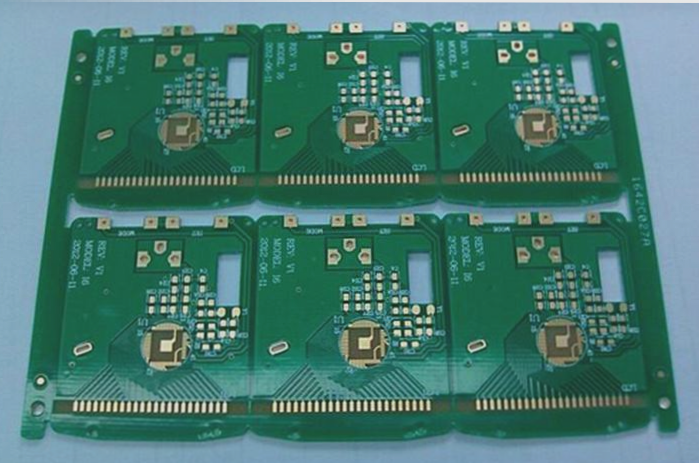

**PCB Insulation Film**
1. The insulating film serves as the base layer of the circuit, with the adhesive layer securing the copper foil to the insulating material. In multi-layer configurations, it is bonded to the inner layers. These films also function as protective barriers, shielding the circuit from dust and moisture while minimizing stress during the bending process. The copper foil acts as the conductive layer.
2. In certain flexible circuits, rigid components made from aluminum or stainless steel are incorporated to provide dimensional stability, physical support for component and conductor placement, and stress relief. The adhesive layer bonds these rigid components to the flexible circuit.
3. Another material used in flexible circuits is the adhesive ply, which features adhesive on both sides of the insulating film. This adhesive sheet provides environmental protection, electronic insulation, and the ability to eliminate a single-layer film. Additionally, it allows for a reduced number of adhesive layers.
1. There are various types of insulating film materials, with the most commonly used being polyimide and polyester fibers. Among all FPC manufacturers in the United States, nearly 80% currently use polyimide film materials, while around 20% use polyester film materials. Polyimide is non-flammable, geometrically stable, highly tear-resistant, and can withstand high temperatures during soldering. Polyester, also known as polyethylene terephthalate (PET), shares similar physical properties with polyimide, has a low dielectric constant, absorbs very little moisture, but is not suitable for high-temperature applications.
2. Polyesters have a melting point of 250°C and a glass transition temperature (Tg) of 80°C, which limits their use in applications that require frequent soldering. In low-temperature environments, they tend to be rigid. However, they are well-suited for products that don’t need to endure harsh conditions, such as mobile phones and similar devices.
3. Polyimide insulating films are typically combined with either polyimide or acrylic adhesives, while polyester insulating materials are generally paired with polyester adhesives. The advantage of using adhesives that match the material properties is that they ensure dimensional stability after dry soldering or multiple lamination cycles. Key properties of adhesives include a low dielectric constant, high insulation resistance, a high glass transition temperature (Tg), and low moisture absorption.
4. In addition to their role in bonding the insulating film to the conductive material, adhesives can also serve as protective cover layers. The primary difference between these two applications lies in the coating method: a cover layer is bonded onto the insulating film to create the laminated circuit structure, typically using screen-printing techniques.
5. Not all laminate structures require adhesives. Layers without adhesives result in thinner circuits and greater flexibility, offering better thermal conductivity compared to adhesive-laminated structures. Due to the thinner nature of adhesive-free flexible circuits and the improved thermal conductivity from the absence of adhesive-induced thermal resistance, these circuits can operate in environments where adhesive-laminated flexible circuits cannot.
6. Copper foil is commonly used for flexible circuits and can be applied through electrochemical deposition (electrodeposition, or ED) or plating processes. The copper foil typically has a shiny surface on one side and a matte surface on the other, which is processed for PCB applications. It is a soft material, but special treatments are used to enhance its bonding properties. Copper foil can be manufactured in various thicknesses and widths, with the matte side often coated with copper. In addition to flexibility, electroformed copper foil also features hardness and smoothness, making it suitable for applications that require dynamic bending.
If your have any questions about PCB ,please contact me info@wellcircuits.com
