1. The soldering process involves joining several steel pieces with varying materials, thicknesses, and coatings to create a complete plate that meets the specific material requirements of different parts of the component.
2. For example, consider the door inner panel: to fulfill functional requirements, the main body of the door inner panel needs a certain level of flexibility, whereas the front and rear sections require added strength.
3. In traditional stamping methods, this often necessitates the addition of reinforcement plates.
4. However, with soldering technology, it is possible to weld together three steel plates of different thicknesses into a single cohesive unit, eliminating the need for additional stamping.

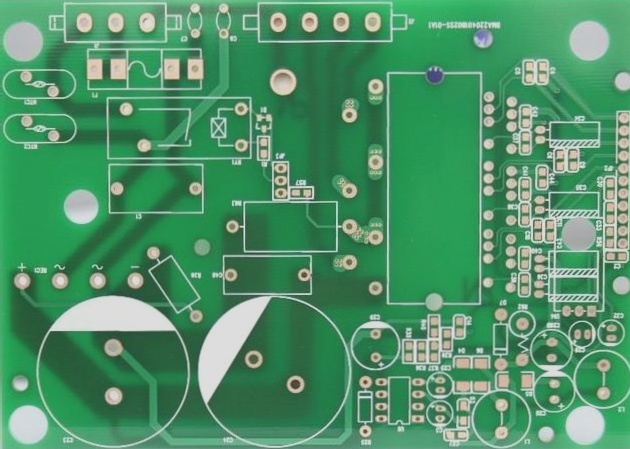

1. A soldering board refers to the process of soldering components onto a printed circuit board (PCB). During the PCB soldering process, the soldering points are heated to bond with the copper foil on the circuit board, achieving both electrical connection and mechanical fixation. Soldering boards are a crucial part of manufacturing electronic equipment and products.
2. Soldering boards are generally categorized into two types: surface mount (SMT) and through-hole soldering. SMT soldering involves attaching surface mount components directly onto the surface of a PCB. Through-hole soldering, on the other hand, requires inserting components into PCB holes and heating the solder joints to create a connection. Each technique has its own advantages and limitations and should be chosen based on specific requirements.
3. During the soldering board process, specialized equipment and tools are used, such as soldering furnaces, hot air guns, soldering stations, and solder wire. Additionally, for SMT soldering, equipment like SMT placement machines and reflow ovens is also required. These tools and equipment help soldering professionals achieve efficient and high-quality soldering.
4. The quality of soldering boards significantly affects the performance and reliability of electronic equipment. Poor soldering can result in issues such as solder joint cracking, short circuits, and solder leakage, which can impact the longevity and stability of the equipment. Therefore, attention must be paid to details such as soldering temperature, solder quantity, soldering time, and method. Moreover, inspecting and testing solder joints is essential to ensure that the soldering quality meets the required standards.
5. **Type of Soldering Techniques**
6. **Reflow Soldering**
This is the most commonly used technique, where solder paste is applied to specific locations on a PCB and then fed into a reflow oven. The heat from the oven melts the solder, which solidifies upon cooling, forming reliable solder joints.
7. **Wave Soldering**
This technique involves selectively soldering specific parts of the board by passing it over a wave of molten solder. The component must be fixed in place for this method. Wave soldering is straightforward because the machine automatically moves the board and components through the solder wave.

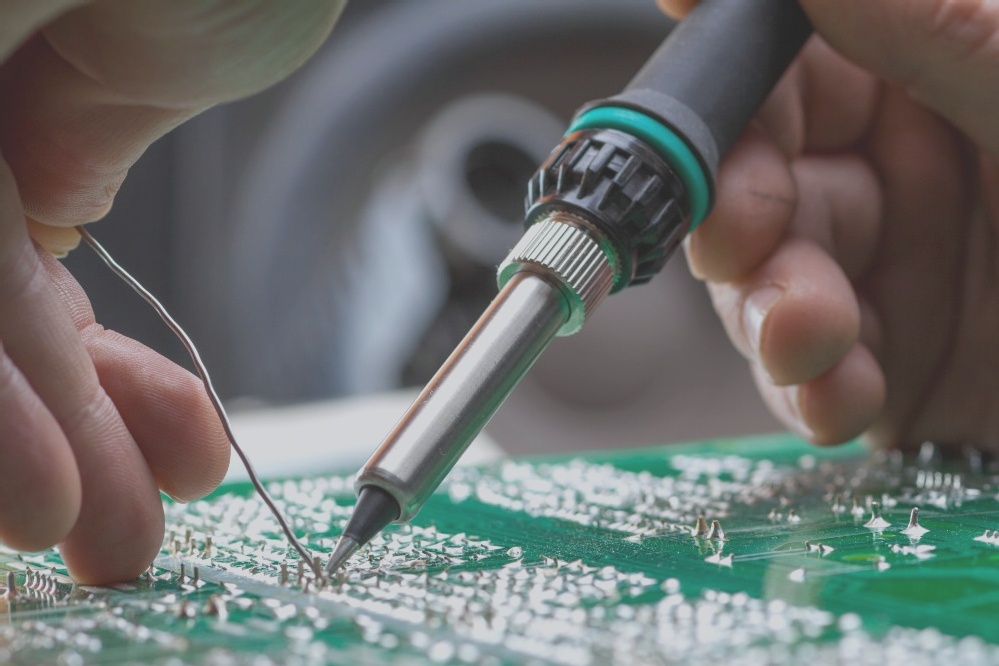

8. **Manual Soldering**
Manual soldering involves manually heating and melting solder wire or soldering tips before applying it to the pins or pads of the PCB. This method requires skill and experience, as parameters such as temperature, pressure, and timing must be carefully controlled.
9. **Laser Soldering**
Similar to reflow soldering, solid solder is placed on the PCB and heated until it flows and completes the solder joint. However, this method uses lasers for heating, offering high precision and flexibility. Laser soldering can also handle components and through-holes, reducing associated risks.
10. **Advantages of Laser Soldering Technology in Soldering Boards**
11. Laser soldering machines are highly automated with a straightforward soldering process. They are user-friendly, thanks to their small focus spot and high positioning accuracy, reducing the need for frequent replacement of welding guns and nozzles, which in turn minimizes downtime.
12. The non-contact operation mode of laser soldering meets cleanliness and environmental standards. The energy is applied via laser without physical contact, eliminating mechanical stress on the workpiece.
13. Laser soldering achieves high machining accuracy, reducing reprocessing costs. It minimizes heat input and the range of metallographic variations in the heat-affected zone, as well as reducing deformation caused by heat conduction.
14. Nanosecond pulsed fiber lasers offer high beam quality. The small core diameter of the optical fibers greatly enhances laser optical quality, meeting the stringent requirements of industrial processing.
15. Fiber optics are compact and flexible, allowing lasers to be designed smaller, more compact, and easier to integrate. They can operate effectively in harsh environments with high impact, strong vibrations, high temperatures, and heavy dust.
16. A soldering board is a vital process in electronic equipment manufacturing. Selecting appropriate soldering techniques and equipment, paying attention to soldering details, and inspecting and testing solder joints are essential to ensuring the soldering quality meets required standards.
